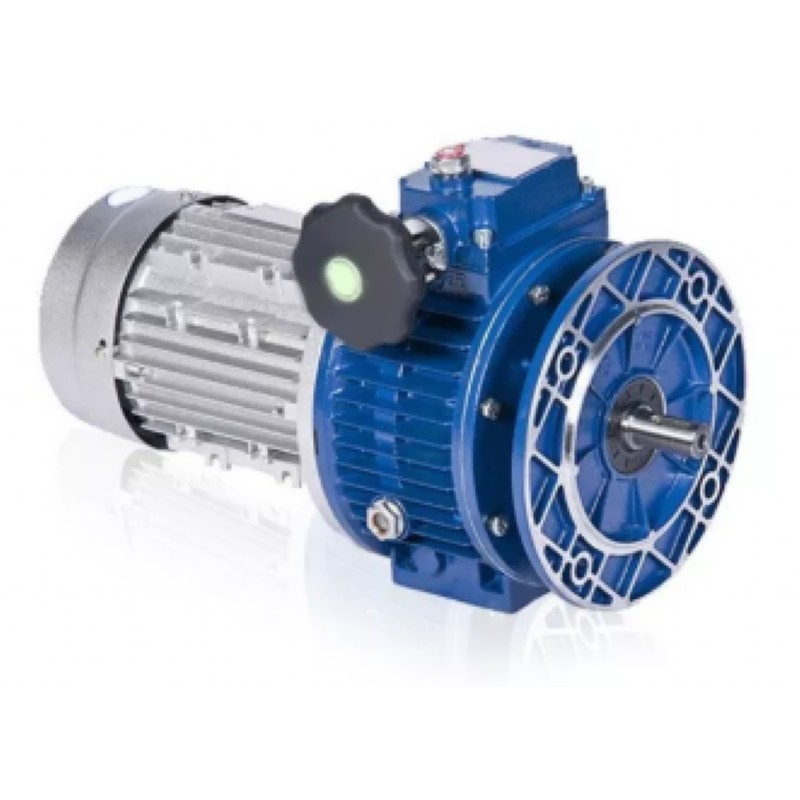

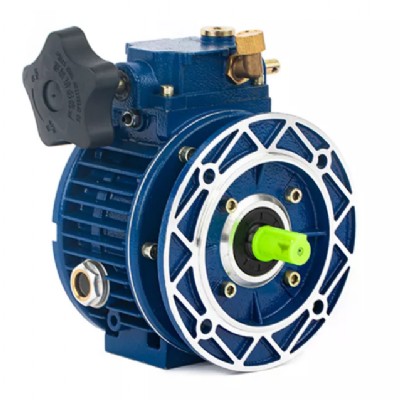

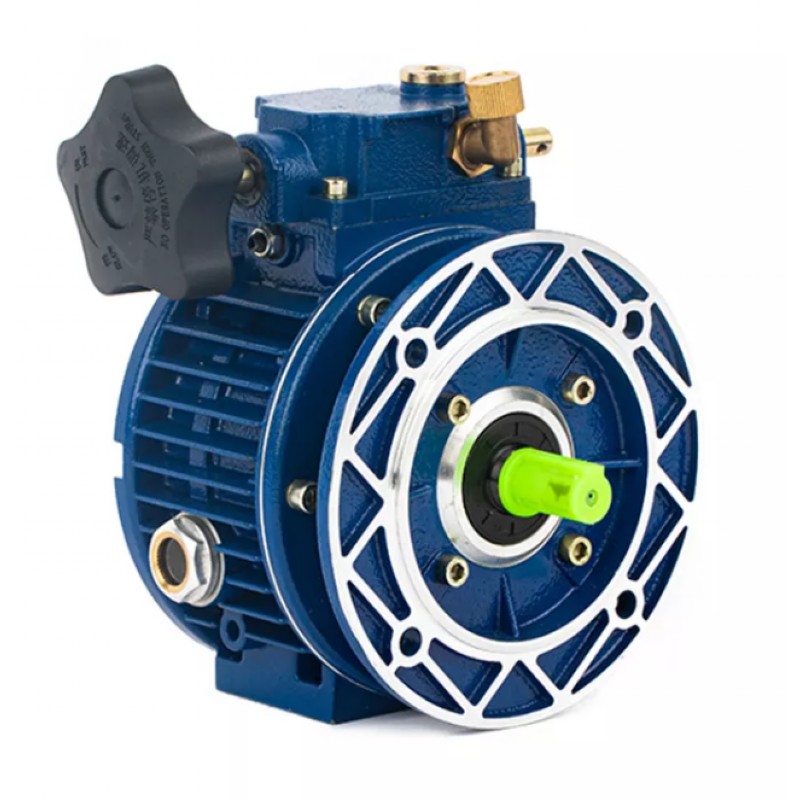

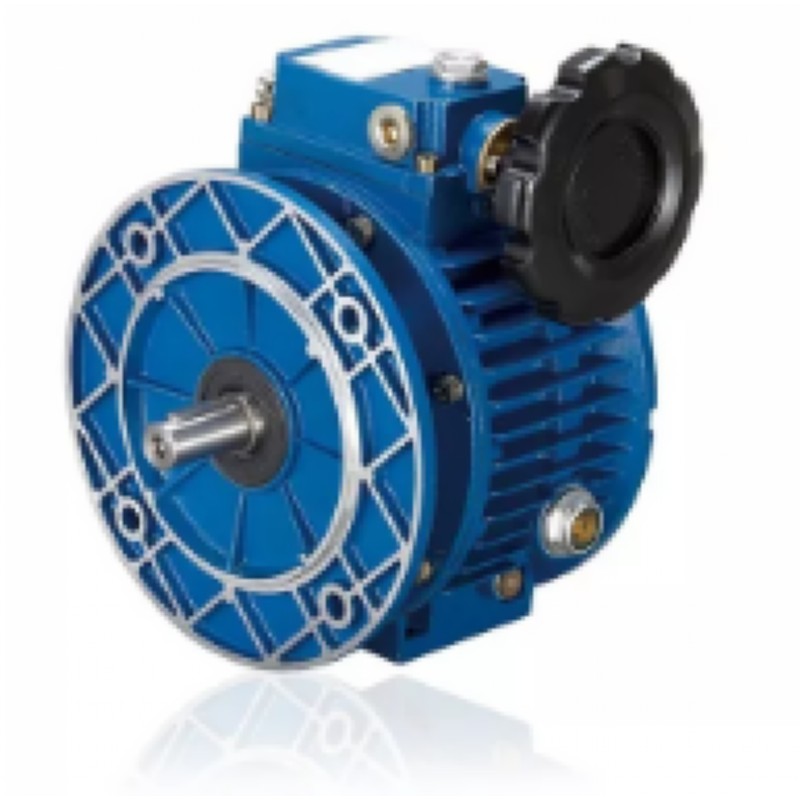

UDL Speed variator with motor

1. Housing: Aluminium Alloy(UDL Series) Cast Iron(UD Series)
2. Input Configurations:
Equipped with Electric Motors
IEC-normalized Motor Flange
3. Output Configurations:
Solid Shaft Output
Solid Shaft Output with Output Flange

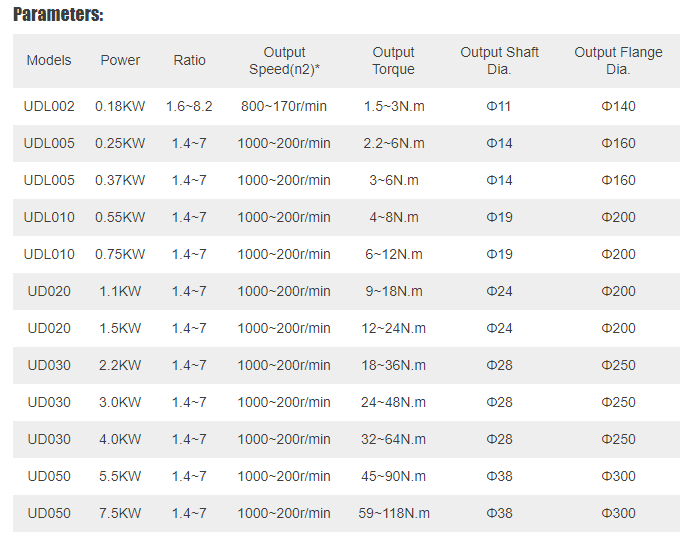

Models:

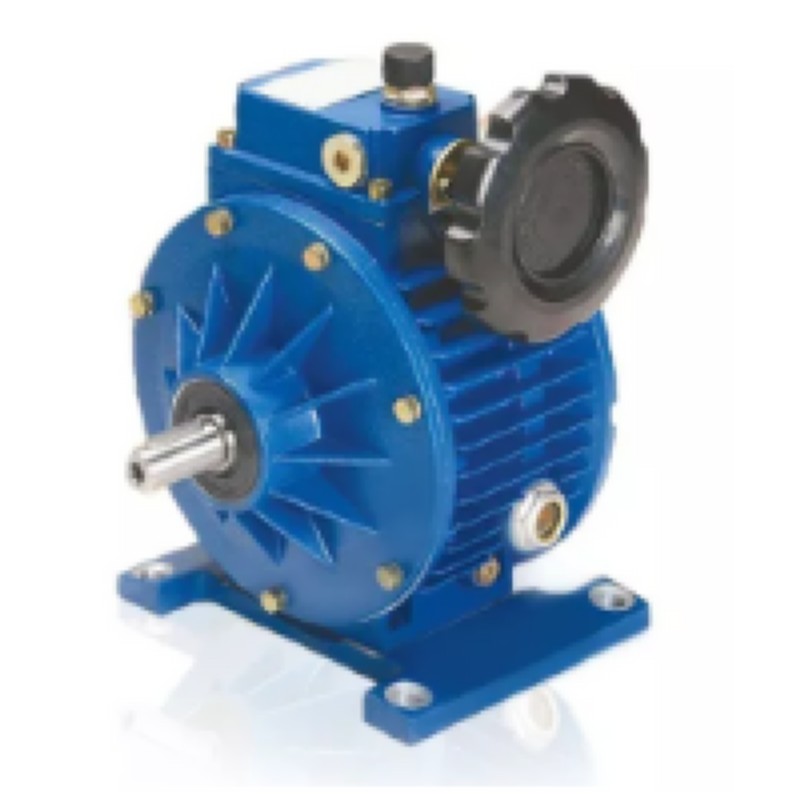

Foot Mounted - UDL002B3~UD050B3
Flange Mounted - UDL002B5~UD050B5

Features:

1. Adjustable speed span can be accurate to 0.5~1 r/min
2. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, RV Series, WB Series cycloid reducers)
3. Compact structure
4. Clockwise and counterclockwise rotation

■速比：B-J

■速比：5:1, 13:1，20:1

■最大输出扭矩：8000 Nm
