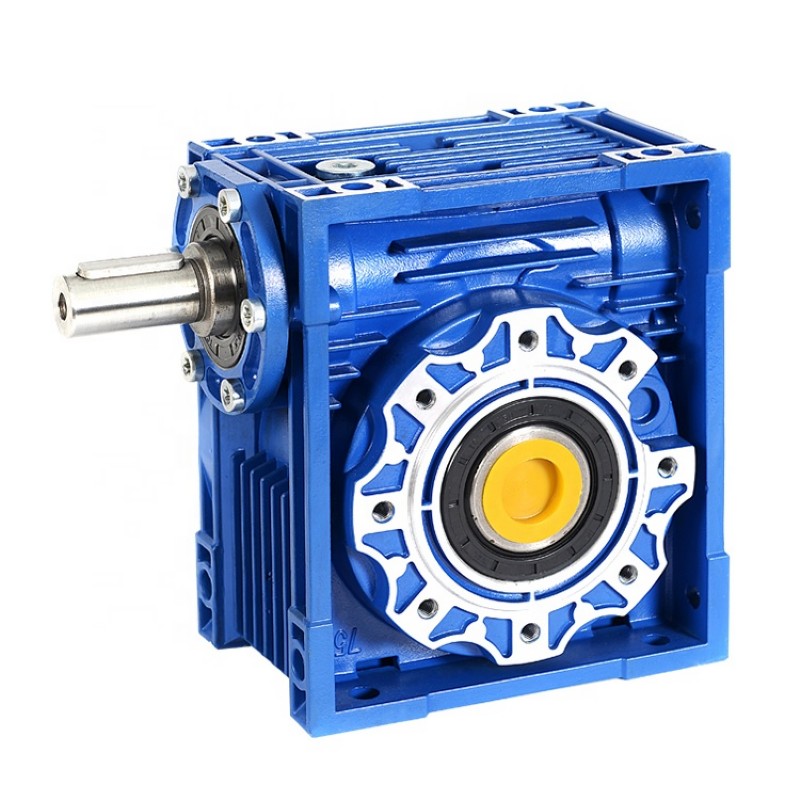

Housing: Die-cast Aluminium Alloy Gearbox (RV025~RV090)
Cast Iron Gearbox (RV110~RV150)
2. Worm Wheel: Wearable Tin Bronze Alloy, Aluminum Bronze Alloy
3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding
4. Input Configurations: Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor)
IEC-normalized Motor Flange, Solid Shaft Input, Worm Shaft Tail Extension Input
5. Output Configurations: Keyed Hollow Shaft Output, Hollow Shaft with Output Flange, Plug-in Solid Shaft Output
6. Spare Parts: Worm Shaft Tail Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover
7. Gearbox Painting:
Aluminium Alloy Gearbox:
After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey
Cast Iron Gearbox: After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
速比: 单级速比5~100，双级速比100~5000.
■输入功率: 0.06KW~15KW
■输入方式: 孔式、轴式、孔轴式、双轴式
■输出方式 : 孔式输出、轴输出
■减速安装方法: B3、B6、B7、B8、V5、V6
■电机接线盒位置: 0°、90°、180°、270°
■电机机座号: 56、63、71、80、90、100、112、132、160、56C、56H、140TC、180TC
1、优质铝合金铸造，重量轻，不生锈；
2、输出扭矩大；
3、传动平稳，噪音小；
4、散热性能好；
5、美观耐用，体积小;
6、适用于全方位安装。
